EXTREME DANGER

NEVER USE THESE DETECTABLE RODDERS IN A LIVE ELECTRICAL ENVIRONMENT, ELECTRICAL SHOCK OR DEATH MAY RESULT IF CONDUCTIVE ROD TOUCHS EXPOSED CIRCUIT.

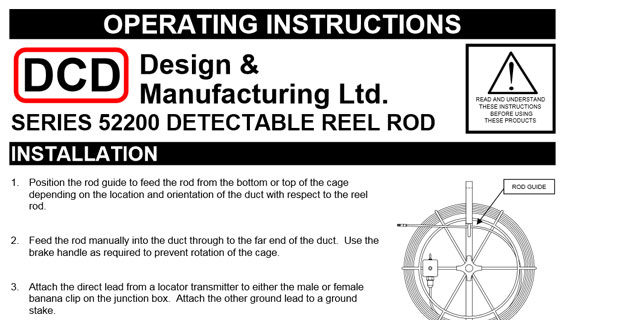

3/16" Diameter Detectable Reel Rod
(Series 52200)
The Reel Rod has a sturdy, powder coated, steel tube frame and features a 16" diameter storage basket. Up to 500ft. of rod can be stored in this basket although DCD recommends that 400ft as the maximum for this diameter rod. A light adjustable brake prevents the rod from reeling out of the basket under its own tension.

5/16" Diameter Detectable Ruf Rod
(Series 53700)
This 5/16" Ruf Rod Duct is one of the most popular sizes because of its versatility in both small and medium size ducts. It is the smallest of the wheel frames, yet still well under 3 ft. in height or length so easy to store or load onto your truck. Although DCD only recommends lengths up to 600 ft, the standard cage will hold up to 1000 ft. The longer lengths should only be used in smaller ducts (up to 2-1/2” dia) and when there are few bends.

7/16" Diameter Detectable Ruf Rod
(Series 56200)
The 7/16" Ruf Rod features our largest frame with a 40" diameter storage basket which can now store up to 1000 ft of 7/16" fiberglass rod. The Standard Ruf Rods include a Female Rod End, a Swivel Rod End and a Pulling Eye. The Deluxe version includes accessories as listed in the catalog PDF.
