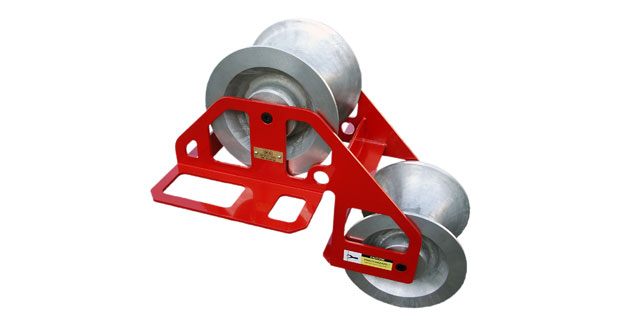

Corner Guides (Series 32300)

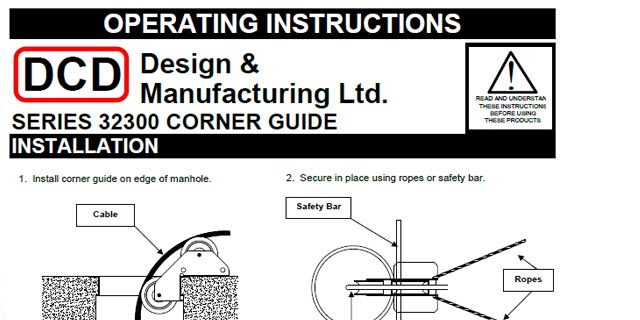

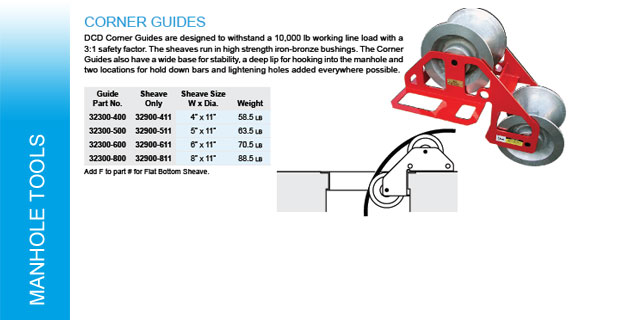

DCD Corner Guides are designed to withstand a 10,000 lb working line load with a 3:1 safety factor. The sheaves run in high strength iron-bronze bushings. The Corner Guides also have a wide base for stability, a deep lip for hooking into the manhole and two locations for hold down bars and lightening holes added everywhere possible.



---

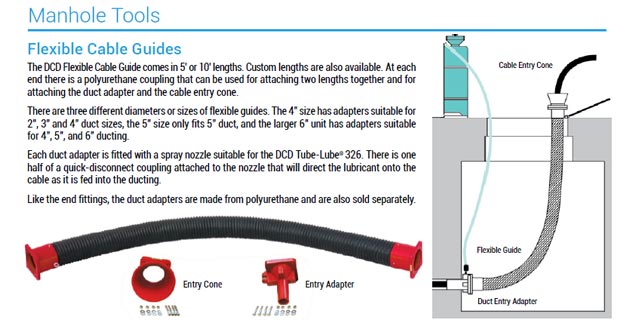

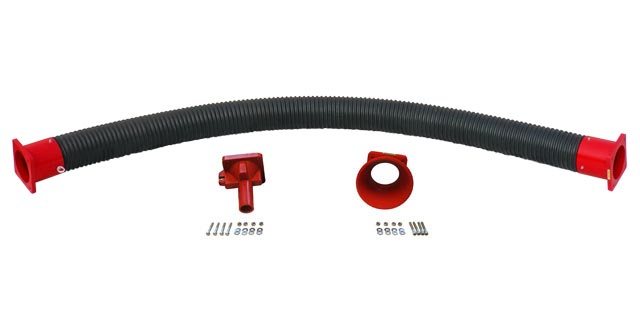

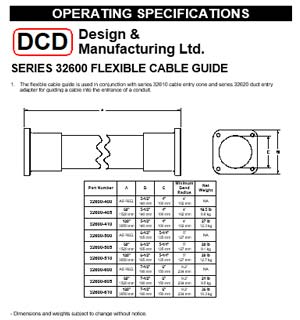

Flexible Cable Guides (Series 32600)

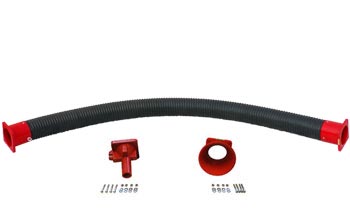

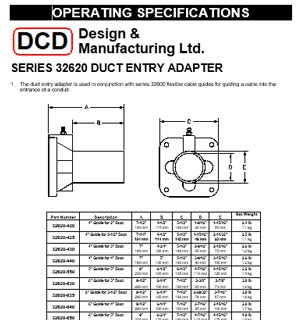

The DCD Flexible Cable Guide comes in 5 ft or 10 ft lengths. Custom lengths are also available. At each end there is a polyurethane coupling that can be used for attaching two lengths together and for attaching the duct adapter and the cable entry cone. There are 3 different diameters or sizes of flexible guides. The 4" size has adapters suitable for 2", 3" and 4" duct sizes, the 5" size only fits 5" duct and the larger 6" unit has adapters suitable for 4", 5" and 6" ducting.

---

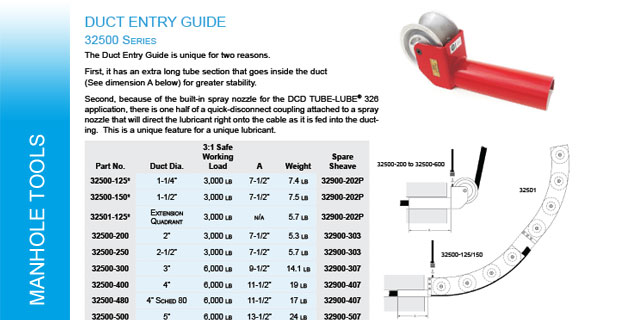

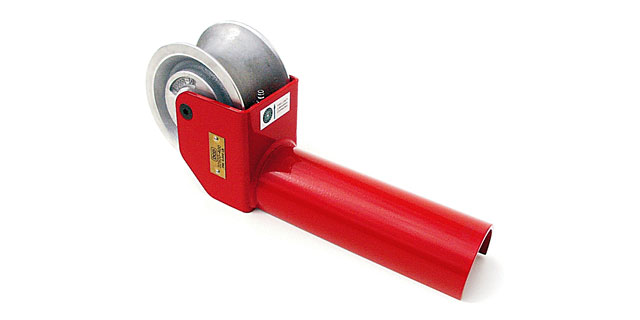

Duct Entry Guide (Series 32500)

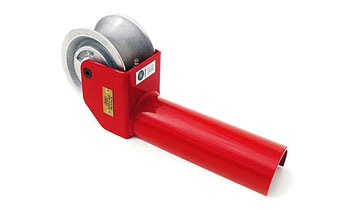

The Duct Entry Guide is unique for two reasons. First, it has an extra long tube section that goes inside the duct (See dimension A below) for greater stability. Second, because of the built-in spray nozzle for the DCD TUBE -LUBE® 326 application, there is one half of a quick-disconnect coupling attached to a spray nozzle that will direct the lubricant right onto the cable as it is fed into the ducting. This is a unique feature for a unique lubricant.

---

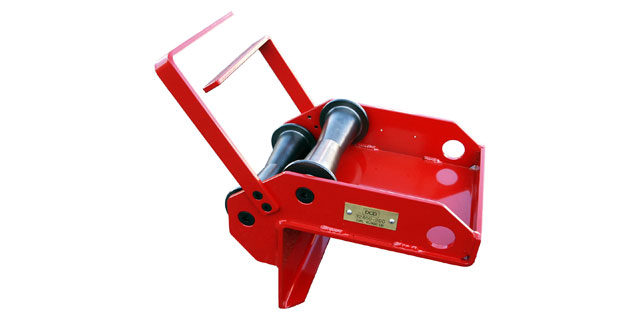

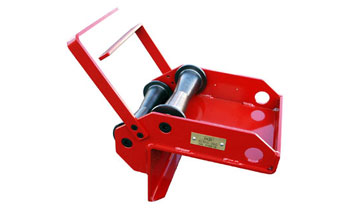

Wire Rope Guide (Series 32400)

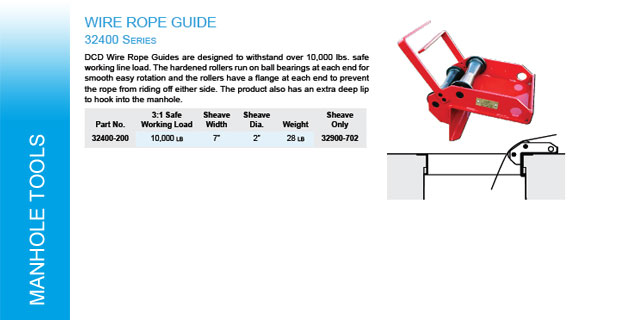

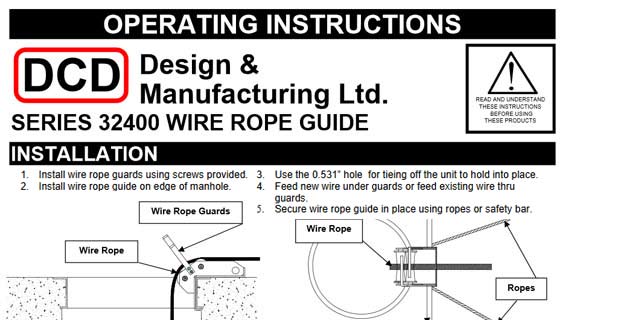

DCD Wire Rope Guides are designed to withstand over 10,000 lbs. safe working line load. The hardened rollers run on ball bearings at each end for smooth easy rotation and the rollers have a flange at each end to prevent the rope from riding off either side. The product also has an extra deep lip to hook into the manhole.



---

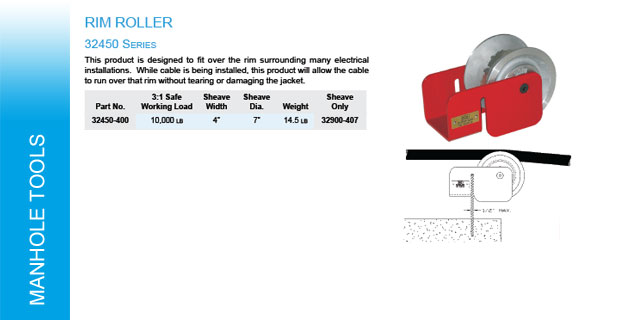

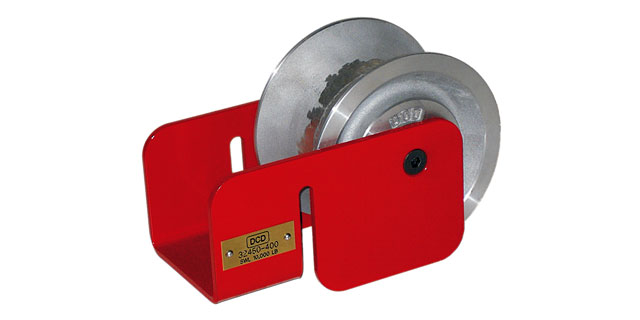

Rim Roller (Series 32450)

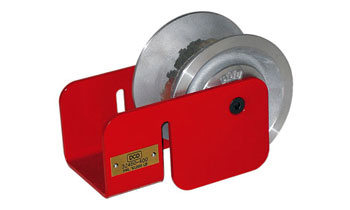

This product is designed to fit over the rim surrounding many electrical installations. While cable is being installed, this product will allow the cable to run over that rim without tearing or damaging the jacket.







---

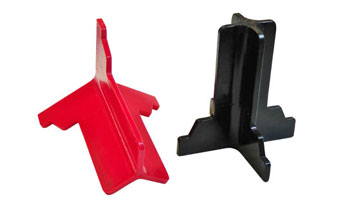

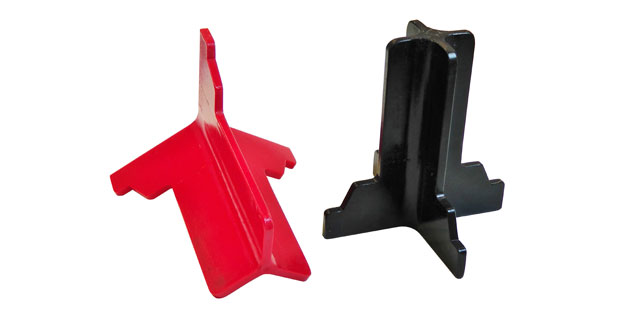

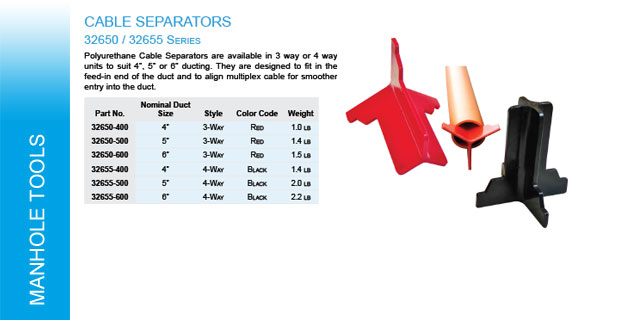

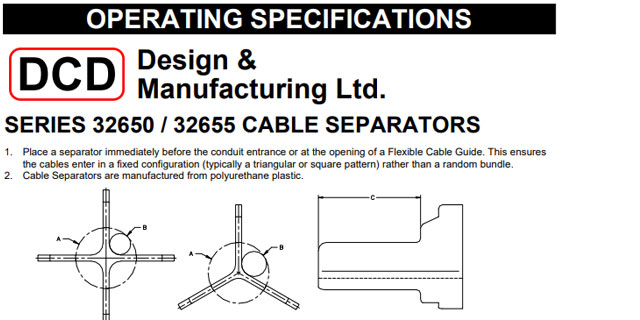

Cable Separators (Series 32650/32655)
Polyurethane Cable Separators are available in 3 way or 4 way units to suit 4”, 5” or 6” ducting. They are designed to fit in the feed-in end of the duct and to align multiplex cable for smoother entry into the duct.





---
