Support Grips

Home > Wire Mesh Pulling & Support Grips > Support Grips

Note: Support Grips are not stock items. Please allow 4-6 weeks lead time.

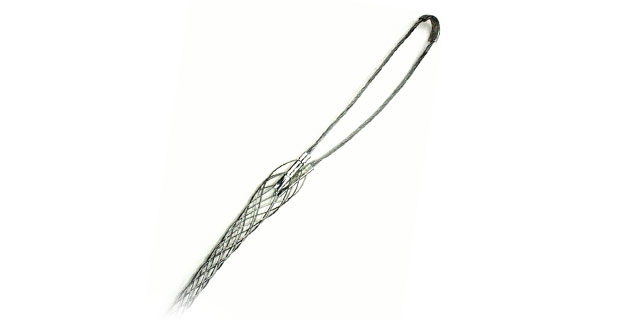

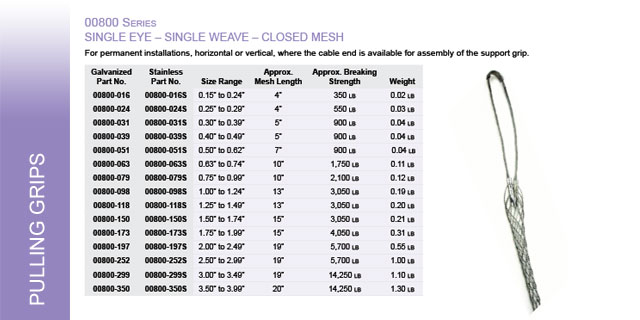

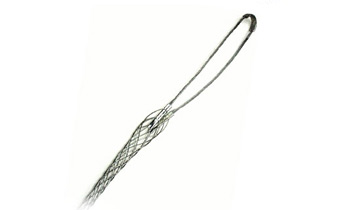

Single Eye, Single Weave, Closed Mesh
(Series 00800)
For permanent installations, horizontal or vertical, where the cable end is available for assembly of the support grip.

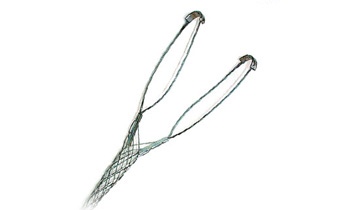

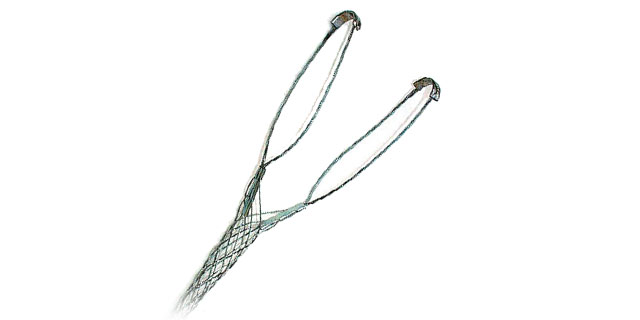

Double Eye, Single Weave, Closed Mesh
(Series 00801)
Fitted with a double eye, for permanent installations where the cable end is available for assembly of the support grip.

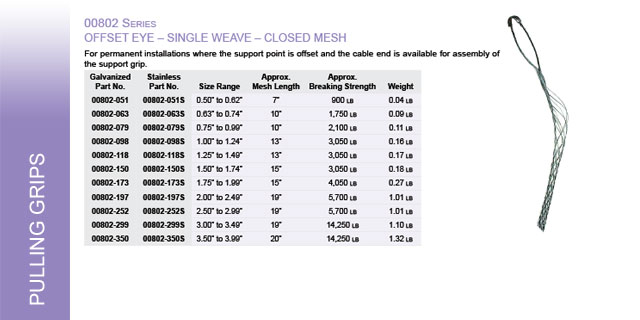

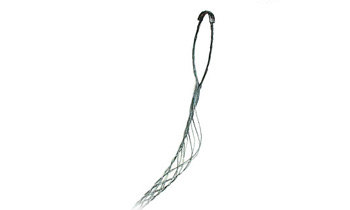

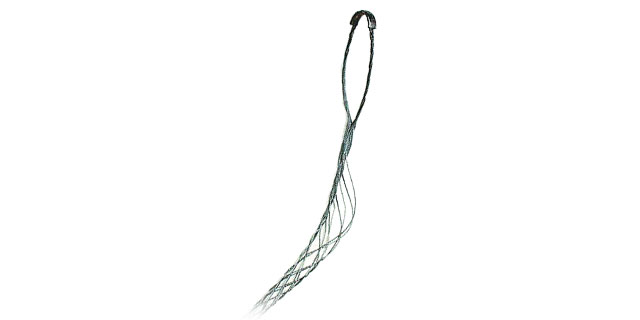

Offset Eye, Single Weave, Closed Mesh
(Series 00802)
For permanent installations where the support point is offset and the cable end is available for assembly of the support grip.

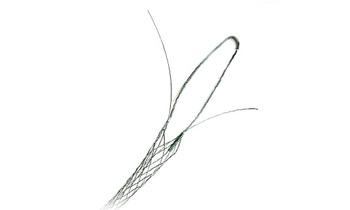

Single Eye, Single Weave, Split Mesh (Lace-Up)
(Series 00810)
For permanent installations where the cable end is not available for assembly of the support grip, the support grip may be laced over the mid-span.

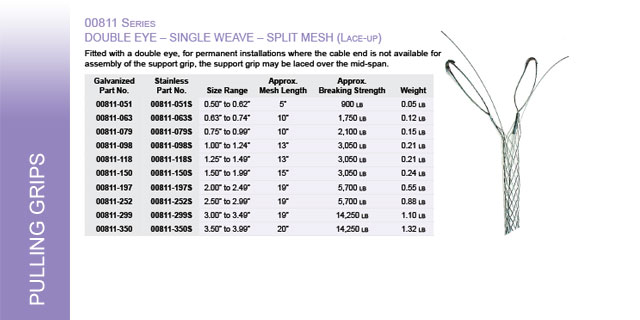

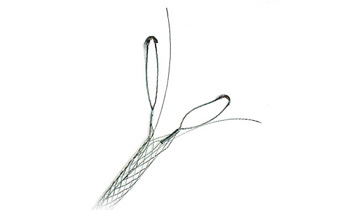

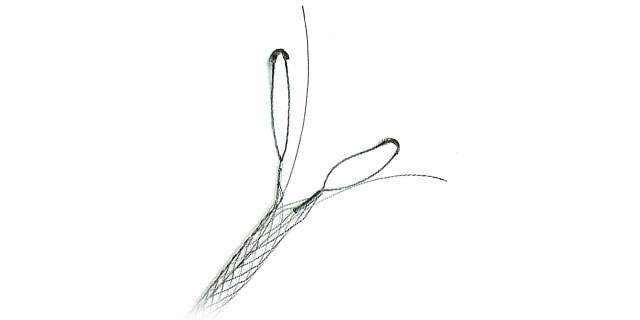

Double Eye, Single Weave, Split Mesh (Lace-Up)
(Series 00811)
Fitted with a double eye, for permanent installations where the cable end is not available for assembly of the support grip, the support grip may be laced over the mid-span.

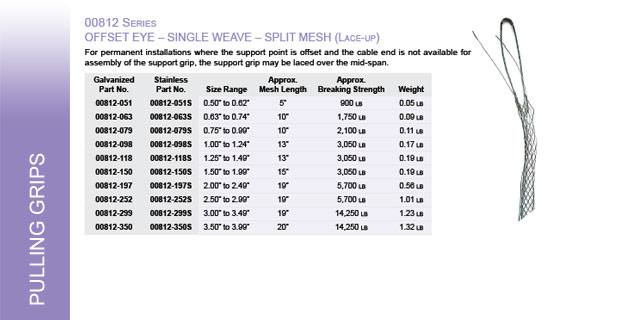

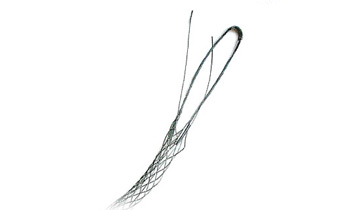

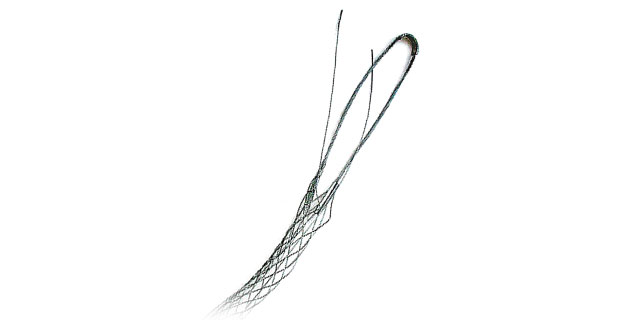

Offset Eye, Single Weave, Split Mesh (Lace-Up)
(Series 00812)
For permanent installations where the support point is offset and the cable end is not available for assembly of the support grip, the support grip may be laced over the mid-span.

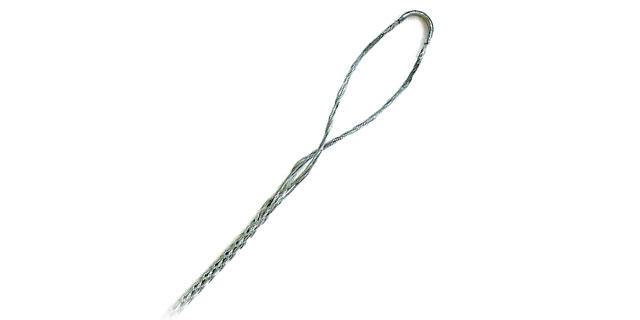

Single Eye, Double Weave, Closed Mesh
(Series 00820)
For heavy duty permanent installations, horizontal or vertical, where the cable end is available for assembly of the support grip.

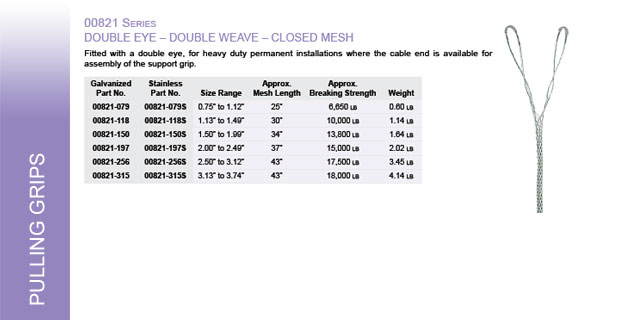

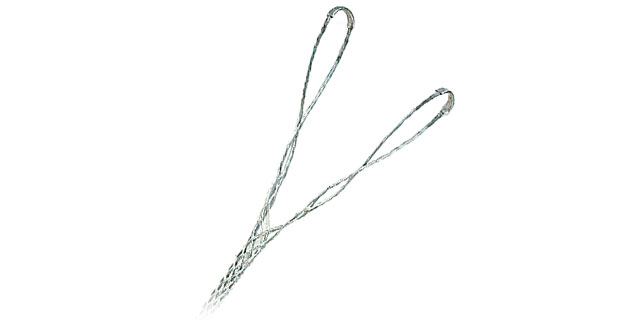

Double Eye, Double Weave, Closed Mesh
(Series 00821)
Fitted with a double eye, for heavy duty permanent installations where the cable end is available for assembly of the support grip.

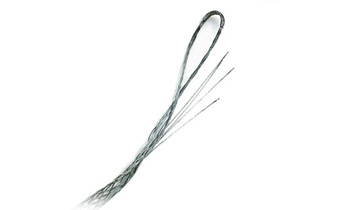

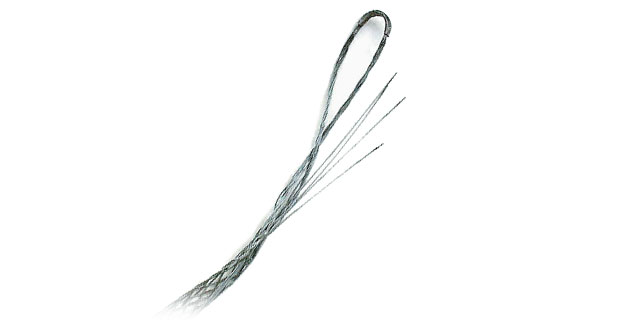

Single Eye, Double Weave, Split Mesh (Lace-Up)
(Series 00830)
For heavy duty permanent installations where the cable end is not available for assembly of the support grip, the support grip may be laced over the mid-span.

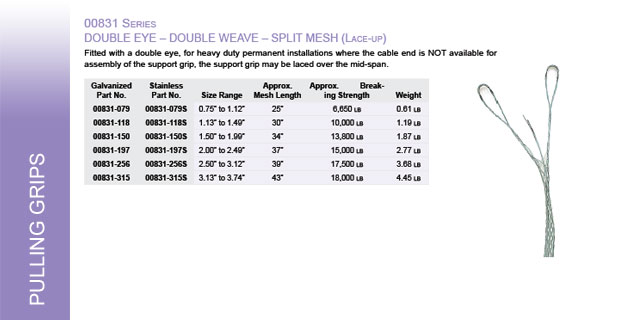

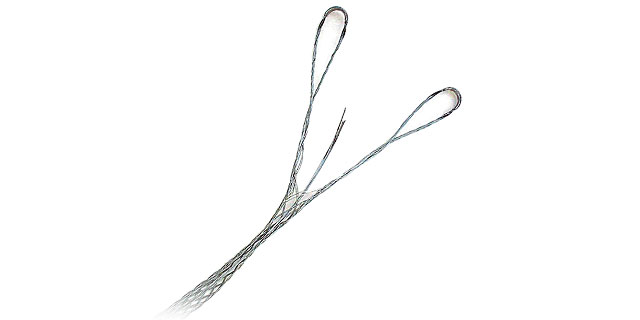

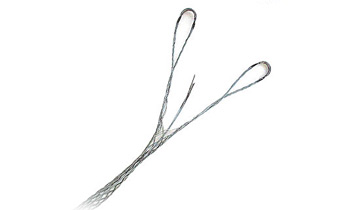

Dual Eye, Double Weave, Split Mesh (Lace-Up)
(Series 00831)
Fitted with a double eye, for heavy duty permanent installations where the cable end is NOT available for assembly of the support grip, the support grip may be laced over the mid-span.

Cable Support Grips are used for supporting any kind of cable in permanent installations. They can be used in either horizontal or vertical installations.

The DCD grips are manufactured of galvanized steel wire and these are long lasting in indoor or under cover installations. For installations where they could be affected by weather conditions, Stainless Steel versions are also available for all Support Grips.

DCD offers three basic types of eye… single, double or offset. Each type is available in Single weave for light duty applications, Double weave for heavy duty applications or Lace-up weave when the cable end is not available for sleeving over the grip. See the specification below for details.

Key Benefits

• Ease of installation
• Low maintenance
• Strong grip
